Product Description
- Autel IM608 II 2 Years Free Update Version improved firmware, Android 10, larger RAM, ROM, with new JVCI+ VCI.
- Add bulit-in DoIP and CAN FD protocol (don’t need converter)
- Support remote expert function
Autel MaxiIM IM608 II Automotive All-In-One Key Programming Tool, Upgrade Version of Autel IM608 Pro
Highlights:
1. Autel IM608 II = IM608 PRO II = IM608S II
2. No IP Restrictions, You can use It All around the World without limitation
3.
Upgraded Version of Autel IM608 and Autel IM608 PRO, with the latest powerful hardware configuration
4. One Year Free Update Online (After One Year, the subscription of Autel IM608 II software costs 800USD per year)
5. Smart Mode and Expert Mode Solution In One Tool to Easy Operation
6. Works for 85% cars in the worldwide, Including BMW, BENZ, VW, AUDI, etc. make your work simple and easier, Best Choice for Locksmith and Workshop
7. Support Multi-Language: Both Diagnostic Software and IMMO Software Support Multi-Language. (The default language is English, the language can be changed into German, Swedish, Italian, Portuguese, French, etc.)
8.
Extended to Work with Autel MaxiVideo MV108/ MV105 allowing you to examine difficult-to-reach areas that are normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.
Note 1: Unable to activate SGW license,currently only FCA and Renualt can buy it, we cannot provide others
Note 2: MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner's permission using the key.
Main Features of Autel IM608 II:
IMMO & Key Programming Bundle
MaxiIM IM608 II 10.1-inch Android Touchscreen Tablet
Program IMMO & Keys for U.S., Asian and European Vehicles
XP400Pro Key and Chip Programmer
JVCI Wireless J2534 Pass Thru Programming Device
Bi-directional Control/ Active Tests
AUTEL MaxiIM IM608 II Supported Functions :
1. IMMO Functions
Auto Detect Make/Model/Year/System
Read PIN (All Key Lost)
Key Learning
IMMO ECU Reset/Adaption
IMMO ECU Refresh/Coding
Remote Learning
AUDI Q5/A4/A5 2015-2017 Key Learning
VW MQB Key Learning
BMW FEM/BDC Key Learning and Adaption
BMW CAS4 Key Learning and Adaption
Mercedes Key Learning
2015-2018 Land Rover & Jaguar write key via dump
Volvo Smart Key Learning/knob-style smart key
Advanced Programming Functions
EEPROM Read/Write
MCU Read/Write
Key Programming
Mercedes Key Read/Write
Remote Frequency Detect
OE-Level Diagnoses
2. All System Diagnostics & Advanced Service Functions (Work with the MaxiFlash JVCI (J2534 ECU Reprogrammer)
Oil Service Reset
Parking Brake Pad Relearn After Replacement
Steering Angle Sensor Relearn
Battery Registration and Reset
Diesel Particulate Filter Regeneration
Tire Pressure Monitoring System
Active Test
ECU Coding
VW/ Audi Component Protection
Complete Service Functions
Autel XP400 Pro adds support for following Chips:
EEPROM-->AMD-->AM29FXXX series chip
EEPROM--> FUJITSU-->MB29FXXX series chip
EEPROM-->ST-->M29FXXX series chip
Engine control module-->SIMTEC76(AM29F800BB) write
IMMO-->BENZ-->ESL_W209_W906 (Motorola) read/write/erase function
IMMO-->BMW-->EWS3 module read/write function
REMOTE_RENEW(renew key)-->NEC-->V51 and V5 chip read/write/erase
Autel XP400 Pro adds support for the following adapter board:
APB113 PCF79XX adapter board
APB114 EWS3 adapter board
APB115 NEC Adapter board
APB118 NEC ELV adapter board
APB119 TB28FXXX adapter board
APB120 TMS370 adapter board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adapter board 1
APB123 AM29FXXX adapter board 2
APB126 M35080/D80 adapter board
APB127 MC68HC0(7)05BXX adapter board
APB128 MC68HC05X32 adapter board
Advanced Key Programming Functions:
Exclusive Smart Mode to guide Key Programming
Auto Read IMMO Data via OBD
One-tap Key Programming via OBD & Easy-to-use Remote Programming
With the newly upgraded key programmer XP400 Pro
Extensive Vehicle & Functionality Coverage
Support Diagnostics & IMMO Programming for 10,000+ Models;
Support Models Up to 2020;
All System Diagnostics and Advanced Maintenance Services;
Benz -- 3rd Generation IMMO CAN-Line / K-Line Add Key, All Key Lost via OBD;
BMW -- Support EWS3/4; CAS 1/2/3/4, FEM/BDC Add Key / All Key Lost;
Volkswagen / Audi -- Add Key / All Key Lost via OBD for 2013 - 2020 Models;
GM -- Read IMMO Password, Add Key / All Key Lost up to 2020;
Ford -- Add Key / All Key Lost (No PIN Needed) up to 2020;
Mazda -- Add Key / All Key Lost (No PIN Needed) up to 2020;
FCA -- Read IMMO Password, Add Key / All Key Lost up to 2020;
Renault -- Add Key / All Key Lost (No PIN Needed) up to 2020
Jaguar LandRover -- Add Key / All Key Lost up to 2019
Volvo -- Semi-smart Key Learning via OBD up to 2018; Smart / Blade / Fobik Key Learning via Dump
Product Comparison Between Autel IM608 II and Autel IM608 Pro
Product Model |
/ |
IM608 II |
IM608 Pro |
Accessories |
VCI |
JVCI+ |
JVCI |
Programmer |
XP400Pro |
XP400Pro |
Hardware Configuration |
CPU |
Qualcomm SDM660 Octa-core Processor
4x 2.2 GHz(A73)
4x 1.8 GHz(A53) |
Samsung Exynos T5260 6-Core Processor:
4x 1.3 GHz(A7)
2x 1.7 GHz(A15) |
OS |
Android 10.0 |
Android™ 4.4.2, KitKat |
Memory |
4 GBRAM+128GB FLASH |
2 GBRAM+64GB FLASH |
Display |
10.1 inches |
10.1 inches |
Resolution |
1920*1200 |
1920*1200 |
Battery |
3.8V 15000 mAh |
3.8V 15000 mAh |
BT |
BT V5.0 + BR/EDR |
BT V2.1 + EDR |
DoIP |
Yes |
Adapter required |
CANFD |
Yes |
Adapter required |
diagnostic function |
Basic functions |
Full Function |
Full Function |
Coding |
Yes |
Yes |
Programming |
Mercedes-Benz BMW system |
Mercedes-Benz BMW system |
IMMO Functions |
Matching device |
Full Function |
Full Function |
Programmer |
EEPROM reading and writing, MCU reading and writing |
EEPROM reading and writing, MCU reading and writing |
Key tool |
Yes |
Yes |
Remote expert |
/ |
Yes |
No |

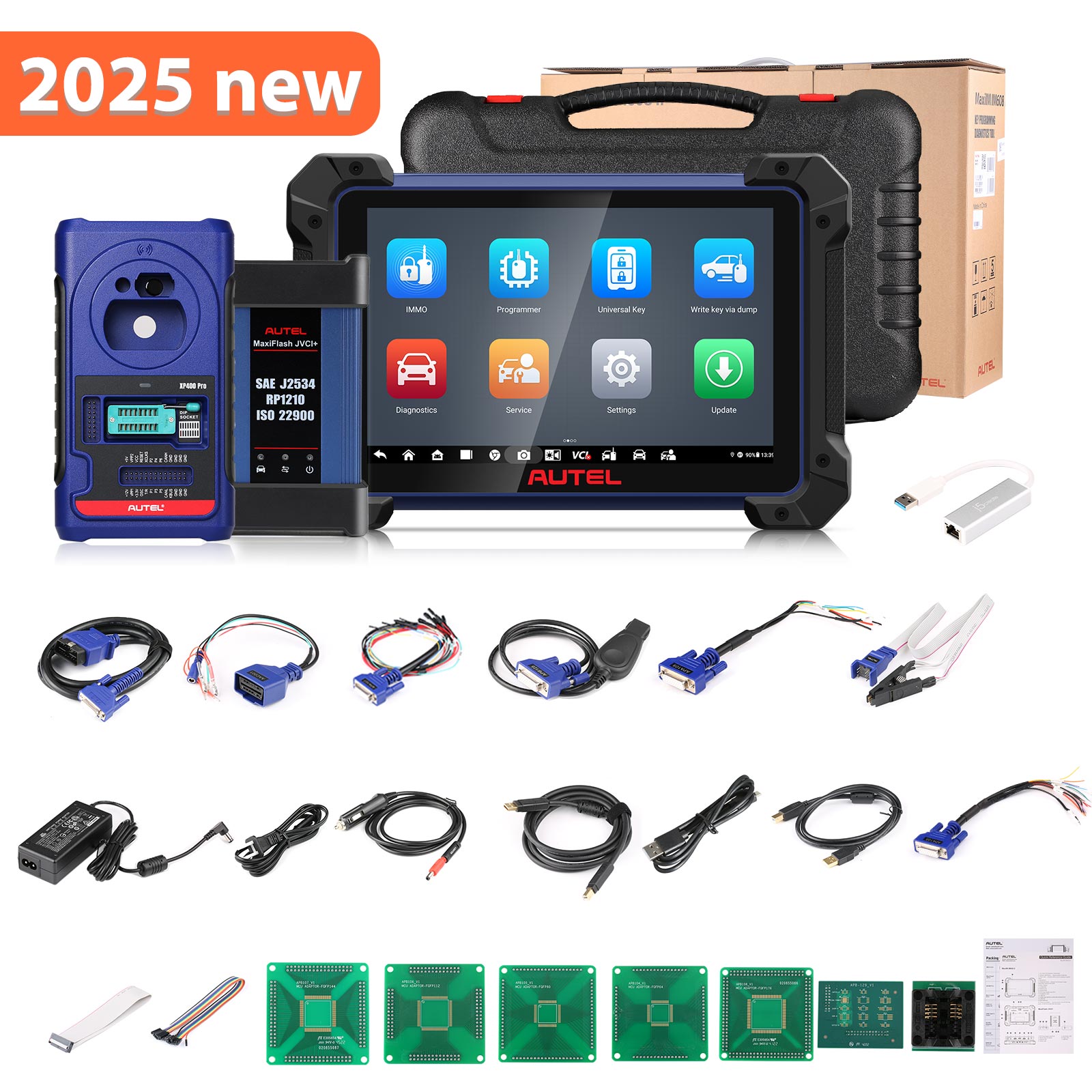

Package Includes:
1pc x IM608 II Tablet
2pcs x OTOFIX Smart Key Watches
1pc x XP400 Pro Key Programmer
1pc x JVCI+ ECU Reprogrammer
1pc x Carry Case
1pc x Main Cable
1pc x USB Cable (2m)
1pc x Connect Cable
1pc x Mini USB Cable
1pc x AC/DC Adapter (12V)
1pc x AAC001
1pc x APC101 (USB Cable)
1pc x APB129 (EEPROM Adapter)
1pc x APB125 (Mercedes Infrared Collector)
1pc x APB104 (MCU_FQFP64)
1pc x APB105 (MCU_FQFP80)
1pc x APB106 (MCU_FQFP112)
1pc x APB107 (MCU_FQFP144)
1pc x APB108 (MCU_FQFP176)
1pc x APB109
1pc x APA002 (EEPROM Socket)
1pc x APA101 (Signal Cable)
1pc x APA103 (EEPROM Clamp)
1pc x APA107 (ECU Clamp)
1pc x APA108 (MCU Clamp)
1pc x APA109 (MC9S12 Clamp)
1pc x USB to Ethernet Adapter
1pc x Packing list
1pc x Quick reference guide
